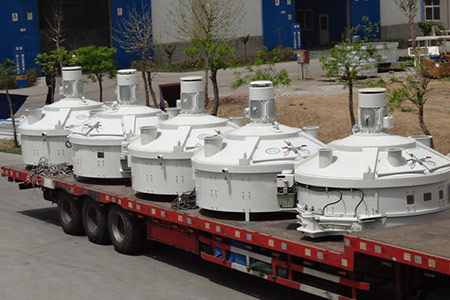

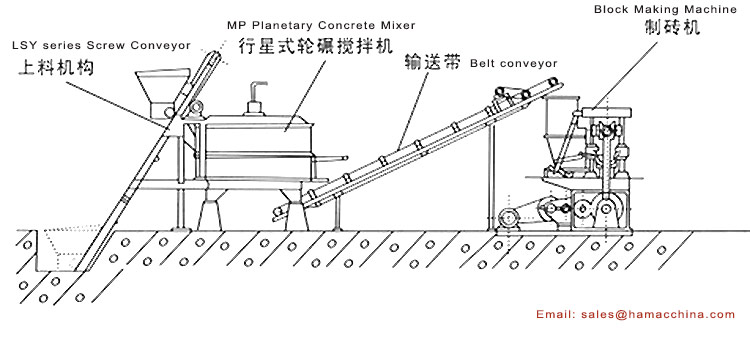

MP series planetary concrete mixer  adopted Germany technique used for mixing concrete .It is not only applies in common concrete ,precast concrete but also in high performance concrete. Planetary Concrete Mixers widely apply to produce precast concrete, common commercial concrete and high performance concrete. It is suitable for mixing dry hard concrete (roller compacted concrete). It is widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, color concrete and dry mortar, etc.

  • 2HZS60 Concrete Batching Plant
  • HZS75B Concrete Batching Plant
  • HZS50 Concrete Batching Plant
  • HZS75A Concrete Batching Plant
  • YHZS75 Mobile Batching Plant
  • HZS50B Concrete Batching Plant
  • HZS40 Concrete Batching Plant
  • 2HZS60A Concrete Batching Plant
  • YHZS35 Mobile Batching Plant
  • HZS60 Concrete Batching Plant
  • YHZS25 Mobile Batching Plant
  • HZS35 Concrete Batching Plant
  • HZS120 Concrete Batching Plant
  • HZS25 Concrete Batching Plant
  • HZS90 Concrete Batching Plant
  • HZS180 Concrete Batching Plant
  • HZS30 Concrete Batching Plant
  • YHZS50 Mobile  Batching Plant
  • YHZM25 Mobile Batching Plant
  • HZS125 Concrete Batching Plant
  • YHZS60 Mobile Batching Plant
  • HZS50A Concrete Batching Plant
  • HZS240 Concrete Batching Plant
  • 2HZS75 Concrete Batching Plant

Clients' Working Site

Global Case

Advantage

1. Motion track

Motion track :the revolution and rotation speed of the blades have been extensively studied and tested to give the mixer a high output without causing the segregation of materials with diffrernt grain size and weight.the movement of the material inside the trough is smooth and continuous.As shown in the picture,the blades track covers the whole bottom of the trough after a cycle.

2. Gearing device

Gearing system:the power transmisssion is realized by a hard surface gear which is designed specially by our company.Fluid clutch is installed between the motor and the gearbox. It can keep the mixer start up normally even in the full load condition.The driving force provided by gearbox drives the mixing arms to do not only have a rotation but also has a revolution,the more complex of the motin track,the more turbulent the mixing is,and then the mixer works more effectively ,its mixing more homogeneos.

3. The security of the maintenance door device

According to market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.

4.Discharging device

Discharging device: according to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most .And there is special sealing device on the discharging door to ensure the sealing reliable.


6. Security device of lifting hopper

the security device of skip hopper safeguards against head-clashing when the hopper is climbing up.

7. Hydraulic pump station

Special designed hydraulic power unit is used to provide power for more than one discharging gates. On emergency, these discharging gates can be opened by hand.

8. Mixing device

Mixing device: driven by the gearing system, the blades fixed on mixing arms and the scarpers arms crush and overturn the material to complete the compelling mixing

9.Access door

Maintaining door: according to the market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.

10. Sprinkler head

The special designed sprayer is installed on the water pipe .the spraying water cloud can cover more area and also make the mixing more.

11. Viewing port

There is an observing port on the maintaining door .You can observe the mixing situation without cutting off power.MP company can long-termly supply the wearing parts.

12. Enhance the hopper

he skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectivelyprevents the dust overflow the trough during the mixing to protect the environment.

13. Temperature and moisture

Temperature and moisture sensor: To ensure concrete and prefabricated parts quality. the sensor of temperature or moisture made in BIKOTRONIC in Germany can be selected to measure temperature or moisture of material being mixer.

14.Weighing system

According to the requirements with powder measure, the aggregate metering and water metering.

15. Dust catcher

The mixer equipped with dust catcher dust catcher to protect the environment.

16. Control system

The control system can automatically control the process of dosing, mixing and discharging.

Specification

Item Type
MP250 MP330 MP500 MP750 MP1000 MP1500 MP2000 MP2500 MP3000
Intput capacity(L) 375 500 750 1125 1500 2250 3000 3750 4500
Output capacity(L) 250 330 500 750 1000 1500 2000 2500 3000
Output capacity(kg) 600 800 1200 1800 2400 3600 4800 6000 7200
Diameter of mixing
Trough(mm)
1300 1540 1900 2192 2496 2796 3100 3400 3400
Mixing power(kw) 11 15 18.5 30 37 55 75 90 110
Discharging power(kw) 2.2 2.2 2.2 2.2 3 3 4 4 4
Scraper(nr) 1/2 1/2 1/2 1/3 2/4 2/4 3/6 3/6 3/9
Paddle 1 1 1 1 1 1 1 1 1
Discharging
paddle
- - - 1 1 1 2 2 2
Weight(kg) 1200 1700 2000 3500 6000 7000 8500 10500 11000
mm Dimension
(L*W*H)
1570
x1480
x1750
1862
x1850
x1855
2220
x2071
x1880
2550
x2295
x2195
2893
x2606
x2217
3223
x2906
x2425
3625
x3235
x2630
3893
x3555
x2695
3893
x3555
x2975
Lifting power(kw) 3 4 4 7.5 11 15 18.5 - -

Note: Any change of technical data should not advise additionally.
