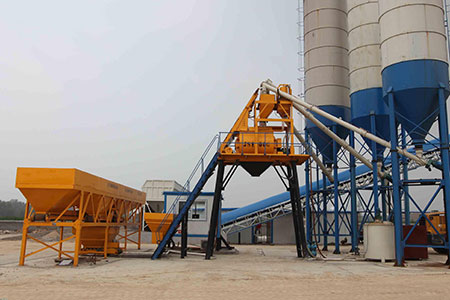

HZS50 Concrete batching plant is designed by HAMAC group, which adopts the advantages of various different concrete mixers and advanced technology. The complete plant includes aggregate batcher, aggregate transporting system, cement storage and transporting system, water and additive supplying system, weighting system, mixing system, electrical control system and pneumatic system etc. It is a fully automatic controlled concrete batching plant. Its structure is reasonable, performance is well and reliable, operated easily, weighing accurate. It is suitable for the various projects such as road, bridge, port, airport and dam etc.

  • HZS240 Concrete Batching Plant
  • YHZS35 Mobile Batching Plant
  • YHZS50 Mobile  Batching Plant
  • 2HZS75 Concrete Batching Plant
  • HZS90 Concrete Batching Plant
  • HZS125 Concrete Batching Plant
  • YHZS60 Mobile Batching Plant
  • HZS50 Concrete Batching Plant
  • HZS120 Concrete Batching Plant
  • HZS60 Concrete Batching Plant
  • HZS35 Concrete Batching Plant
  • HZS75A Concrete Batching Plant
  • HZS75B Concrete Batching Plant
  • YHZS75 Mobile Batching Plant
  • HZS50B Concrete Batching Plant
  • HZS40 Concrete Batching Plant
  • YHZS25 Mobile Batching Plant
  • HZS30 Concrete Batching Plant
  • HZS50A Concrete Batching Plant
  • HZS25 Concrete Batching Plant
  • 2HZS60A Concrete Batching Plant
  • HZS180 Concrete Batching Plant
  • YHZM25 Mobile Batching Plant
  • 2HZS60 Concrete Batching Plant

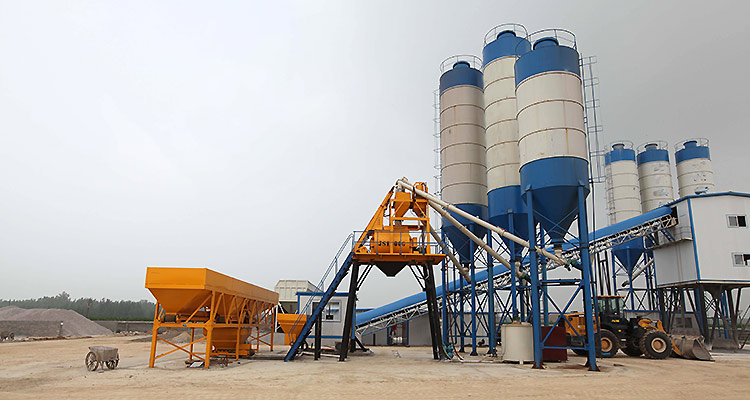

Clients' Working Site

HZS50 Concrete Batching Plant

Global Case

Advantage

1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS1000B twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.

Specification

Model HZS50
Theoretic productive 50m3/h
Concrete mixer JS1000B
Mixer power 2X18.5kw
Maximum aggregate size 80mm
volume of discharge product 1m3
Batcher HDP1600A
aggregate transporting way Bucket conveyor
aggregate weighing 3000Kg ±2%
Cement weighing 600Kg ±1%
Water weighing 400Kg ±1%
Loading height 2.58m
total power 85Kw
total weight 14.87t(the height of discharge 2.7m)
17.57t(the height of discharge 3.8m)
Overall dimension (working condition: LXWXH) 10115mm×4070mm×6560mm (the height of discharge 2.7m)
17012mm×4070mm×8400mm(the height of discharge 3.8m)
silo (optional) As client request, the quantity and volume is optional for 50t or 100t.
screw conveyor  (optional) One φ219 screw conveyor for each silo
