Introduction
Belt conveyor type concrete batching plant is a plant which is forced and high efficiency, it is an ideal equipment to produce the commercial concrete which is used to produce plastic concrete, dry concrete and so on. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories which produce the pre-fabricated concrete component.
This series batching plant is equipped with a JS series double horizontal shafts forced mixer which is easy to be operated and maintained, with shorter mixing time, longer life time of tear and wear parts. Its final product of concrete is very good. It is newly designed with the control system of electronic weighing, computer controlled, digital display etc. The electronic weighing system is equipped with damping device, automatic compensation and precise measuring. The transportation system for aggregate adopts the specially designed belt conveyor and sidewalk and platform for repair. So it is the ideal choice to make the high quality concrete.

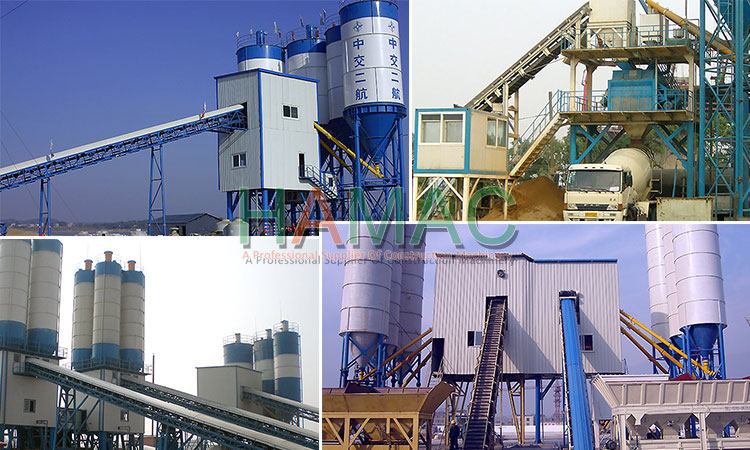

Clients' Working Site
Performance
1. With belt conveyor to feed the mixer, work stably and continuously;
2. Adopt twin horizontal shaft forced type concrete mixer or planetary mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.
3. Excellent environmental protection, dust collection system and anti-noise design.
4. Accurate weighing system (aggregate, cement, water, additive).
5. PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production.
Specification
| Technical data | Model | ||||||
| HZS60 | HZN60 | HZS90 | HZN90 | HZS120 | HZS180(150) | HZS240(200) | |
| Theoretical capacity(m³/h) | 60 | 60 | 90 | 90 | 120 | 180(150) | 240(200) |
| Mixer model | JS1000 | MP1000 | JS1500 | MP1500 | JS2000 | JS3000 | JS4000 |
| Batching system | PLD1600 | PLD1800 | PLD2400 | PLD2400 | PLD3200 | PLD4800 | PLD6400 |
| Discharging height (mm) | 4100 | 4840 | 4100 | 4100 | 4100 | 4100 | 4100 |
| Maximum aggregates size(mm) | 60(80) | 60(80) | 60(80) | 60(80) | 60(80) | 60(80) | 60(80) |
| automatic Cycle time(s) | 60 | 60 | 60 | 60 | 60 | 60(72) | 60(72) |
| Weighing Precision of Aggregate | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Weighing Precision of Cement | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Weighing Precision of Water | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Weighing Precision of Additive | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Total power(KW) | 106 | 114 | 145 | 145 | 175 | 215 | 295 |
Note: Any change of technical data shall not be advised additionally.
