Introduction
Module stabilized soil mixing plant material has a strong adaptability, grading variety, good reliability, easy operation, compact structure, reasonable layout. Widely used in highway, railway, municipal engineering, airport construction and other applications require subbase materials.

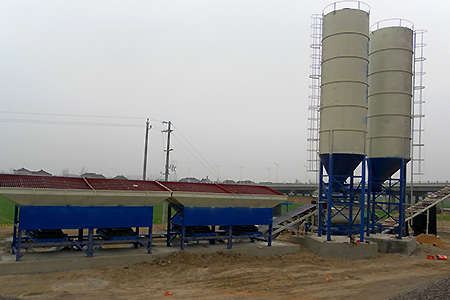

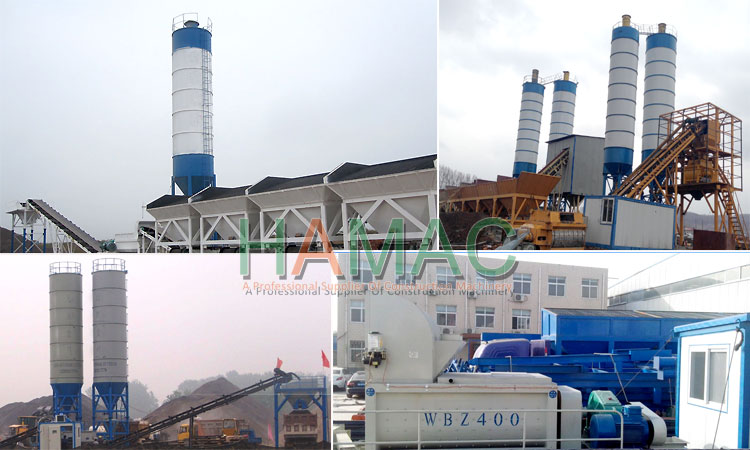

Clients' Working Site
Performance
1. easily disassembled and assembled, save time;
2. operate easily, maintain conveniently;
3. higher capacity and efficiency;
4. matching ratio accurate, mixing uniformly; weighing automatic;
Specification
| Model | MWCB300 | MWCB400 | MWCB500 | MWCB600 |
| Type | twin-shaft compulsory mixer | |||
| Capacity (t/h) | 300 | 400 | 500 | 600 |
| The aggregate silo volume m3 | 3×12 | 4×12 | 4×12 | 4×15 |
| Max. aggregate size(mm) | ≤60 | |||
| Accuracy of batching (%) | Aggregate ±2、cement ±1、water ±1 | |||
| Feeding height (m) | 3.9 | 4.1 | 4.1 | 4.5 |
| Discharging height (m) | 3.5 | 3.5 | 3.5 | 3.8 |
| The speed of mixer | 632r/min | 632r/min | 632r/min | 632r/min |
| Total power (kw) | 95 | 105 | 120 | 140 |
|
1. Total power does not include the screw conveyor. 2. The quantity and volume of hopper can be designed according to customers’ request; 3. Any change of technical data should not be advised additionally; |
||||
