Introduction

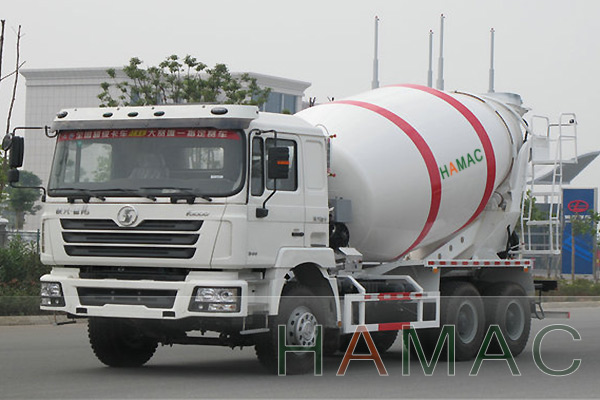

4cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.
Performance
4cbm Concrete Mixing Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
4cbm Concrete Mixing Truck has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.
1. Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.
2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer
Specification
| Technical data of 3cbm | |||
| Name | 3cbm mixing truck | Model of engine | YN33CR |
| Chassis model | T-KING 688 | Engine type | Forced circulation cooled |
| Total weight (kg) | 4600 | Engine displacement (L) | |
| Dimension L*W*H(mm) | 6500*3100*3200 | Engine power (kW) | 79 |
| Wheel base(mm) | 3300 | Max. standard engine speed(r/min) | 2200 |
| Front overhang(mm) | 1200 | Barrel geometric volume (m³) | 3.5 |
| Rear overhang(mm) | 2100 | Max. mixing volume (m³) | 3 |
| Max. gradeability(degree) | 25 | Feed rate (m³) | ≥0.5 |
| Max. speed(km/h) | ≤75 | Discharge rate (m³) | ≥0.8 |
| Turning diameter (m) | ≤15 | Max. rotate speed (r/min) | 6-10 |
| clutch | double dry type clutch | Barrel slope (°) | 16 |
| Transmission type | shaft type | Diameter of mixing barrel (mm) | Φ1600 |
| Drive mode | rear wheel drive | Gear box | Ky67-3-c |
| Steering mode | Steering wheel | Hydraulic pump | 63 gear pump |
| Service brake | Air disconnected brake | Hydraulic motor | gerotor motor |
| Parking brake | Air rear brake | Water tank volume (L) | 62 |
| Tyre | 750-16 | Water supply way | Air pressure |
