TS series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance.
If you know the above information, please contact us by email or online service and leave your contact information. Our professional salesman will contact you within 24 hours to discuss about the solution with you.
Introduction

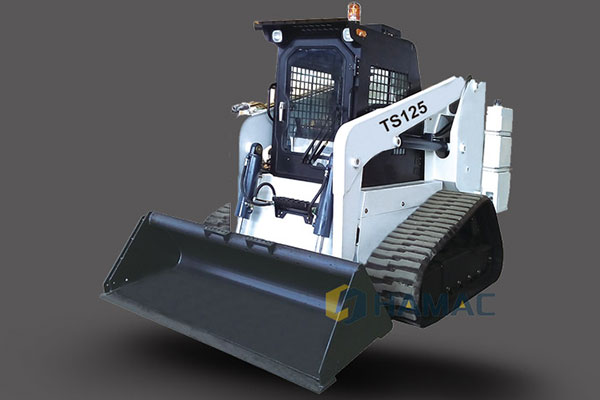

TS series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.
Performance
1. TS series crawler type skid steer loader is equipped with rubber crawler driving system. It is suitable for soft ground and mountain work conditions. With double-speed motor, the running speed can reach 18km per hour;
2. Equipped with high flow system, the maximum flow can be 120L/min, 130L/min, 140L/min. A scarifier can be installed at back of machine, the maximum deep tillage will be 500mm.
Specification
| Model | TS50 | TS65 | TS75 | TS100 | TS125 |
| Operating Load (Kg) | 700 | 1000 | 1050 | 1200 | 1500 |
| Max. Speed (Km/H) | 10/15 | 12/18 | 12/18 | 12/18 | 12/18 |
| Hydraulic Flow (L/Min) | 60 | 75 | 80 | 88 | 88 |
| High Flow System Flux | 120 | 140 | 140 | ||
| Track Model | 300*52.5 | 320*84 | 320*84 | 320*84 | 450*86 |
| Rated Power (KW) | 36 | 55 | 55 | 74 | 103 |
| Fuel Tank Volume (L) | 50 | 80 | 90 | 90 | 90 |
| Self Weight (Kg) | 2800 | 3800 | 3800 | 4500 | 4800 |
| Bucket Volume (M³) | 0.3 | 0.5 | 0.5 | 0.55 | 0.6 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
