Introduction

Combined our concrete pump with the high quality chassis, Hamac design the new generation of truck mounted concrete pump include the advantages of our concrete pump and our pump truck. Its working performance is reliable, structure is perfect, operation is easy.

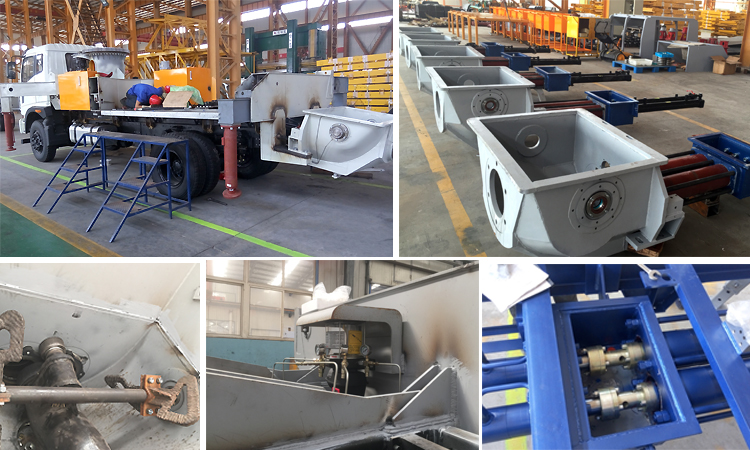

Detailed Photos

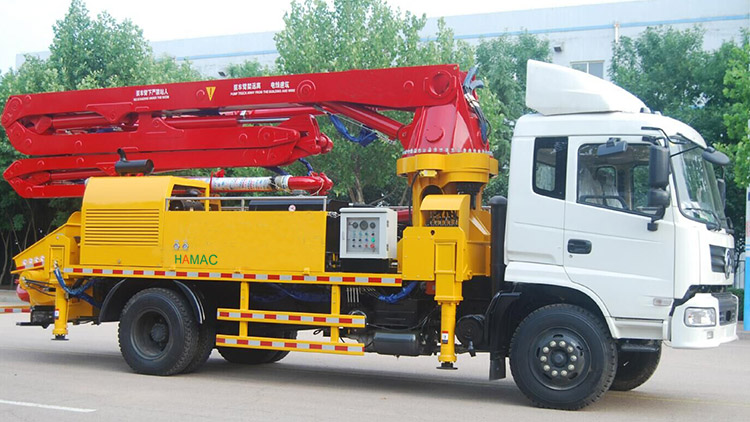

Truck Mounted Concrete Pump

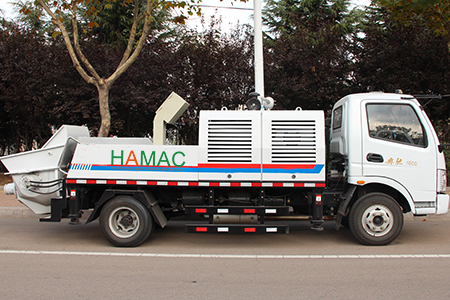

Truck Mounted Concrete Pump

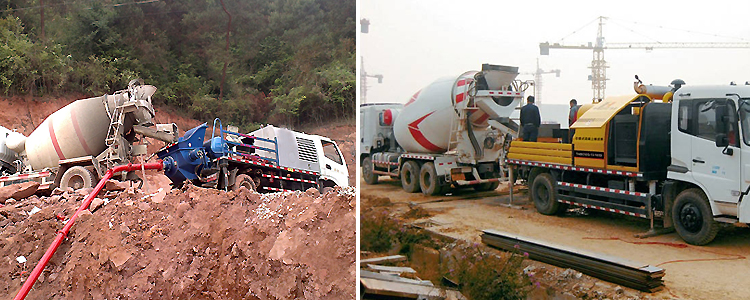

Working Site


Truck Mounted Concrete Pump


Performance

Power system: Adopt original VOLVO/DUETZ and LOVOL diesel engine;

Main oil pump: Adopt HAWE series or Rexroth series from German, Kawasaki series from Japan. Mainly we use variable displacement piston pump to make sure the stable reliable working performance. Because of the pressure exceeding and overflow function, the main oil pump and diesel engine will be protected successfully;

Chassis: We adopts the Dongfeng chassis from the biggest truck factory in China. Its quality is reliable. Its emission standard is National IV.

The high material sucking technology: Optimized ihttp://www.hamacchina.com/admin_mac/media_main.php?dopost=filemanagernner wall of hopper, smooth S tube valve, and accurate blade angle ensure the concrete is sucked into the concrete cylinder, improving the efficiency to more than 90%;

Large diameter of concrete delivery cylinder: The diameter of concrete delivery cylinder is enlarged to 230mm, reduce the upward and backward wearing times of concrete pistons, lengthened the service lift of concrete pistons.

High quality wear resistance parts: Integration of German technology and advanced technology, ken mechanical friction rotating components’ service life greatly improved, with unique lubricating device, mechanical rotation reaches maintenance-free state.

Specification

Item Unit Diesel engine
HBC50-13-56D HBC90-13-162D HBC90-16-176D HBC90-18-195D
Driving system Chassis brand - WUZHENG/AOCHI DONGFENG DONGFENG DONGFENG
Emission standard - National IV National IV National
Wheel base m 3.66 4.7 4.7 4.7
Max. driving speed Km/h 60 90 90 90
Pumping system Diesel engine model power Kw 56 162 176 195
Driving mode - Hydraulic driving Hydraulic driving Hydraulic driving Hydraulic driving
Oil cylinder inner diameter*stroke mm Φ125×Φ80×1200 Φ150×Φ100×1650 Φ150×Φ100×1650 Φ150×Φ100×1650
Concrete cylinder inner diameter*stoke mm Φ200×1200 Φ230×1650 Φ230×1650 Φ230×1650
Oil pressure of system Mpa 32 32 32 32
Switch of H-pressure and L-pressure ---- Automatic switch
Fuel tank capacity L 180 290 290 290
Hydraulic oil tank capacity   200 600 600 600
Cooling mode of hydraulic system ---- Fan cooling
Concrete theoretical capacity M3/h 50 90 90 90
Max. delivery pressure Mpa. 13 13 16 18
Theoretical distance m 450 700 1000 1150
Theoretical height m 130 180 250 280
Concrete slump cm 14-23
Max. aggregate diameter mm Crusher stone:40/pebble:50
Water tank capacity L 180 200 200 200
Lubrication capacity   Automatic lubrication
  Length *Width*Height mm 7200×2100×2250 8754×2470×2760 8754×2470×2760 8754×2470×2760
Full-load total weight Kg 6500 12000 12600 13200
