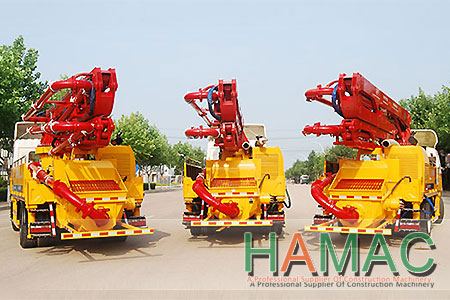

HMC5033 Truck Concrete Pump Boom is the refined product among the middle and short arm pump truck, after HBT trailer concrete pump, HBC truck-mounted concrete pump, HGY hydraulic concrete placing boom, and it is the high efficient concrete conveying equipment integrating driving, pumping, placing.The boom covers high reliability, economy, safety, durability, owning reasonable matching of Chassis, power, electric control and hydraulic pump system.Besides, it has flexible telescopic boom, less space occupation of the leg, convenient moving vehicle, flexible and security.With the special chassis for the development of rural market and the 2.3 meters width, it can easily adjust to and pass through the narrow and sludge rural roads. Using flexible four arm design, fabric ranges 20% higher than three-arm.

  • YHZS50 Mobile  Batching Plant
  • YHZS35 Mobile Batching Plant
  • HZS90 Concrete Batching Plant
  • HZS30 Concrete Batching Plant
  • 2HZS60A Concrete Batching Plant
  • 2HZS75 Concrete Batching Plant
  • HZS60 Concrete Batching Plant
  • HZS125 Concrete Batching Plant
  • HZS50A Concrete Batching Plant
  • 2HZS60 Concrete Batching Plant
  • HZS50B Concrete Batching Plant
  • HZS35 Concrete Batching Plant
  • HZS25 Concrete Batching Plant
  • YHZS25 Mobile Batching Plant
  • HZS40 Concrete Batching Plant
  • HZS50 Concrete Batching Plant
  • HZS120 Concrete Batching Plant
  • HZS180 Concrete Batching Plant
  • YHZM25 Mobile Batching Plant
  • HZS75A Concrete Batching Plant
  • HZS240 Concrete Batching Plant
  • YHZS75 Mobile Batching Plant
  • HZS75B Concrete Batching Plant
  • YHZS60 Mobile Batching Plant

Clients' Working Site

Global Case

Advantage

1. The construction is especially for the new rural middle-low levels.
2.The manufacture of short arm frame designed for high-speed rail construction.
3.The design of national IV emission standard for energy conservation, and environmental protection
4.Hydraulic automatic reversing of pumping system is for simple maintenance.
5.18-35 meters arms can move up and down, in accordance with high-speed rail laws.
6. X-legs is designed to lead more safe and stable operation.
7.Extremely high performance price ratio and use reliability help the party make profits.

Specification

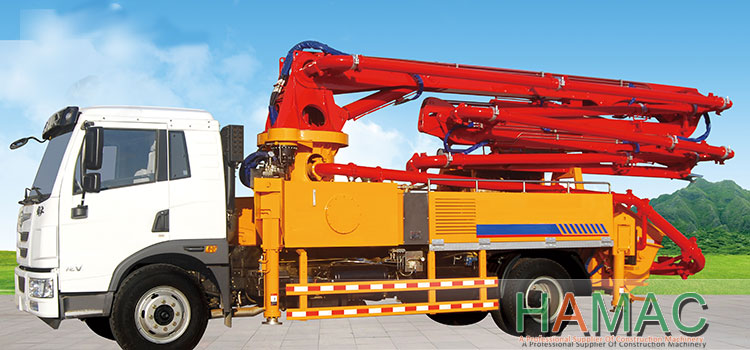

HMC5033 Truck Concrete Pump Boom
CHASSIS Chassis FAW/FOTON
Emission standards National standard IV
Engine DACHAI or YUCHAI
Power and rated speed of engine 200p/2000rpm
Wheelbase 4800
Max driving speed 80km/h
Vehicle approach angle/departure angle



24.6°/15.6°
Tire type 10.00R20 18layers


BOOM SYSTEM

Max concrete placing height 32.8m
Max concrete placing radius 29.3m
Max concrete placing depth 18.5m
First arm length(MM) 7300
Second arm length(MM) 5600
Third arm length(MM) 5600
Fourth arm length(MM) 5400
Fifth arm length(MM) 5400
Arm foldable angle 90/180/360/540/720
Boom control system Load sensing proportion control system
Arm folding form M type
Turret rotation angle 90°
Front support leg span 6000
Back support leg span 7000
The leg longitudinal distance (MM) 6380
Leg opening type X
Trail length of hose 3000mm
Diameter of pipeline (MM) 125
Electrical control system Control Power Supply 24v
Control model PWM
Working voltage 24
Electric parts Omron
Wireless remote control Germany HBC or homebred
Hydraulic transmission system Hydraulic system type Open circuit
Rated working pressure 31.5Mpa
Main oil pump Rexroth /Kawasaki
Main oil pump model A11VO190,K3V180
Main oil pump capacity 190,180
Electro-hydraulic directional control valve Imported or Domestic
Suction and back oil filter Liming(domestic)
Jib multi-way valve HAWE or domestic
Jib balance valve Italy
Jib oil pump Domestic
Support leg multi-way valve Italy or domestic
Safety valve Imported or domestic
Oil cylinder hydraulic seals Parker
Hydraulic hopper capacity 450
Hydraulic oil cooling Air-cooling
Main oil cylinder XIELI(domestic)
Transfer case Germany STIEBEL or domestic
Slewing reducer Domestic brand
Hose connection Eaton
Cleaning system Air pressure or plunger pump
DIMENSIONS&WEIGHT Total length of vehicle(MM) 9370
Total width of vehicle(MM) 2350
Total height of vehicle(MM) 3610
Total weight of vehicle(T) 19.5
PUMPING SYSTEM The type of distribution valve S valve
Concrete piston Domestic
Max. outlet pressure(H/L) 10/5
Concrete cylinder Dia x Stroke 200/1450
Max. feeding height(MM) 1450
Hopper capacity(M3) 0.65
Concrete slump 160-220
Allowable max diameter of aggregate(MM) 40
Lubricating model Centralized automatic
