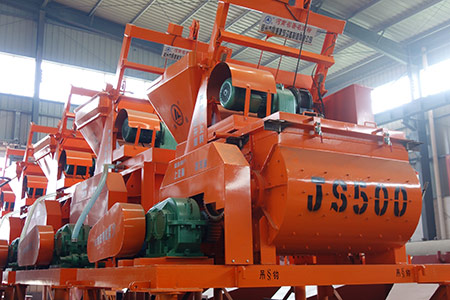

JS500 series concrete mixer is a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple type concrete batching plant. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.

  • HZS60 Concrete Batching Plant
  • YHZS25 Mobile Batching Plant
  • HZS180 Concrete Batching Plant
  • YHZS50 Mobile  Batching Plant
  • HZS50A Concrete Batching Plant
  • HZS120 Concrete Batching Plant
  • HZS40 Concrete Batching Plant
  • 2HZS75 Concrete Batching Plant
  • HZS75A Concrete Batching Plant
  • YHZS60 Mobile Batching Plant
  • HZS75B Concrete Batching Plant
  • YHZM25 Mobile Batching Plant
  • HZS35 Concrete Batching Plant
  • HZS125 Concrete Batching Plant
  • 2HZS60A Concrete Batching Plant
  • HZS25 Concrete Batching Plant
  • HZS30 Concrete Batching Plant
  • HZS50B Concrete Batching Plant
  • HZS240 Concrete Batching Plant
  • HZS50 Concrete Batching Plant
  • YHZS75 Mobile Batching Plant
  • YHZS35 Mobile Batching Plant
  • 2HZS60 Concrete Batching Plant
  • HZS90 Concrete Batching Plant

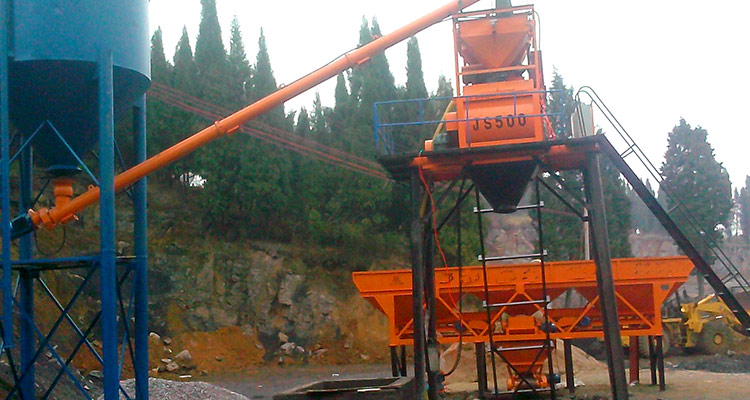

Clients' Working Site

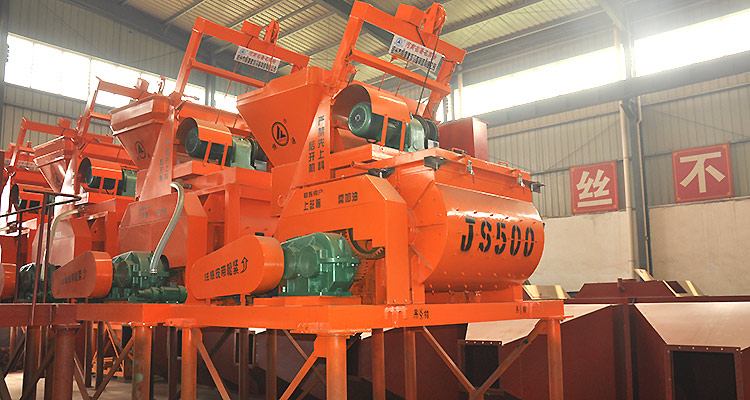

JS series Concrete Mixer

JS series Concrete Mixer

Global Case

Advantage

1. Special drum prolongs the service life of the steel wire rope.
2. Precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose Hamac.
5. Concrete intensity test proves the excellent performance of the mixing equipment.

Specification

Model JS500 JS750 JS1000 JS1500 JS2000 JS3000 JS3500 JS4000
Discharging volume (L) 500L 750L 1000L 1500L 2000L 3000L 3500L 4000L
Feeding volume (L) 800L 1200L 1600L 2400L 3200L 4800L 5600L 6400L
Capacity ≥25m³/h ≥37.5m³/h ≥50m³/h ≥75m³/h ≥100m³/h ≥150m³/h ≥180m³/h ≥200m³/h
Maximum aggregate size (pebble/gravel)mm 40/50 40/60 60/80 80/100 80/100 80/120 80/120 80/120
Cycle time (S) 72 72 60 60 60 60 60 60
Total weight (kgs) 4000 5500 8700 11300 15000 11450 12000 19000
Discharge height (m) 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8
Mixing blade Rotary speed 35r/min 26r/min 29.6r/min 24.5r/min 24.5r/min 21r/min 21r/min 21r/min
Quantity 2×7 2×7 2×8 2×8 2×8 2x10 2x10 2x11 2x12
Mixing motor Model Y180M-4 Y200L-4 Y180M-4 Y225M-6 Y250M-6 Y280M-6 Y280M-6 Y315S-6
Power 18.5kw 30kw 2x18.5kw 2x30kw 2X37kw 2X55kw 2X55kw 2X55kw
Hoist motor Model YEZ1325-4-B5 YEZ132M-4-B5 YEZ160L-4 YEZ180L-4 YEJ180L-4 Y25M -4 Y25M -4 Y25M -4
Power 5.5KW 7.5KW 15KW 18.5KW 22KW 2 × 55 kw 2 ×55 kw 2 × 75 kw
Pump motor Power 1.1KW 1.1KW 3KW 3KW 4KW 5KW 5KW 6KW
